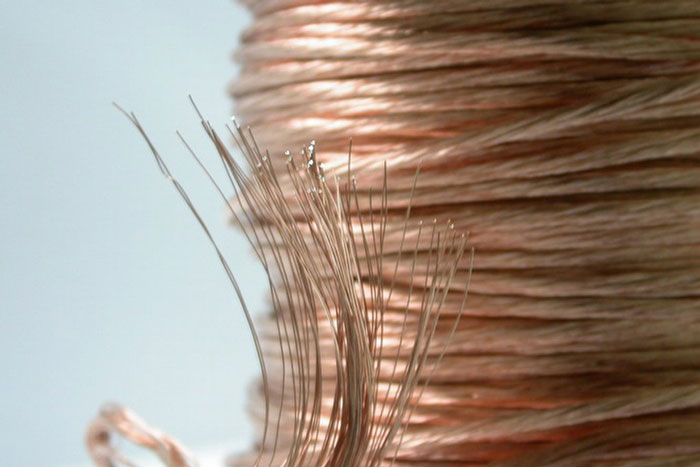

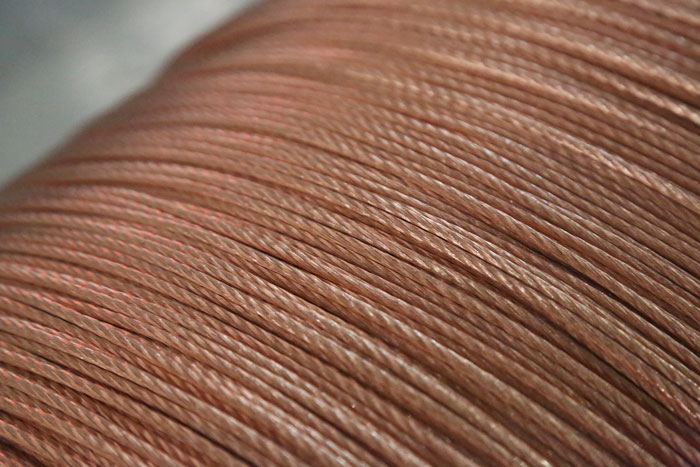

Copper Clad Aluminum Stranded wire consists of a number of small CCA wires. Density of CCA wire is lower than that of copper wire, so CCA stranded wire has advantage on length compare with copper stranded wire. That will help cable manufacturer to reduce production cost.
Structure |
Calculated Cross Section Area (mm2) |
Calculated Overall diameter (MM) |
MAX D.C Resistance (Ω/km) |
KG/KM |
|
Strands |
Strands/Nominal diameter of single wire |
||||
13 |
13/0.20 |
0.408 |
0.83 |
67.2 |
1.31 |
20 |
20/0.20 |
0.628 |
1.03 |
43.68 |
2.02 |
32 |
32/0.20 |
1.005 |
1.31 |
27.3 |
3.24 |
10 |
10/0.25 |
0.491 |
0.91 |
55.91 |
1.58 |
16 |
16/0.25 |
0.785 |
1.16 |
34.94 |
2.53 |
26 |
26/0.25 |
1.276 |
1.47 |
21.5 |
4.11 |
29 |
29/0.25 |
1.423 |
1.55 |
19.28 |
4.58 |
19 |
19/0.47 |
3.295 |
2.37 |
8.33 |
10.61 |
19 |
19/0.59 |
5.192 |
2.97 |
5.28 |
16.72 |
19 |
19/0.75 |
8.39 |
3.78 |
3.27 |
27.01 |
7 |
7/1.29 |
9.144 |
3.94 |
3 |
29.44 |
7 |
7/1.33 |
9.72 |
4.06 |
2.82 |
31.3 |
CCA stranded wires are used for electrical and industrial purpose.

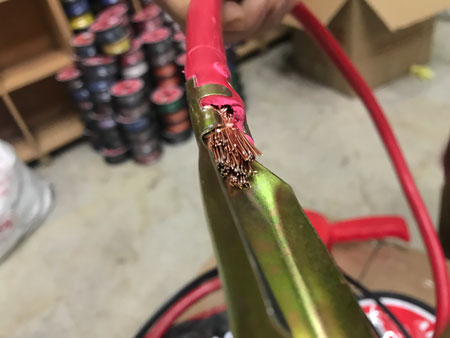

Booster cable
Advantage:
1.Better price-less expensive than copper,reducing costs of material for cable production.
2.Higher conductivity-electrical conductivity much higher than pure aluminum.
3.Lighter weight-easy to transport and install thus saves labor cost.
